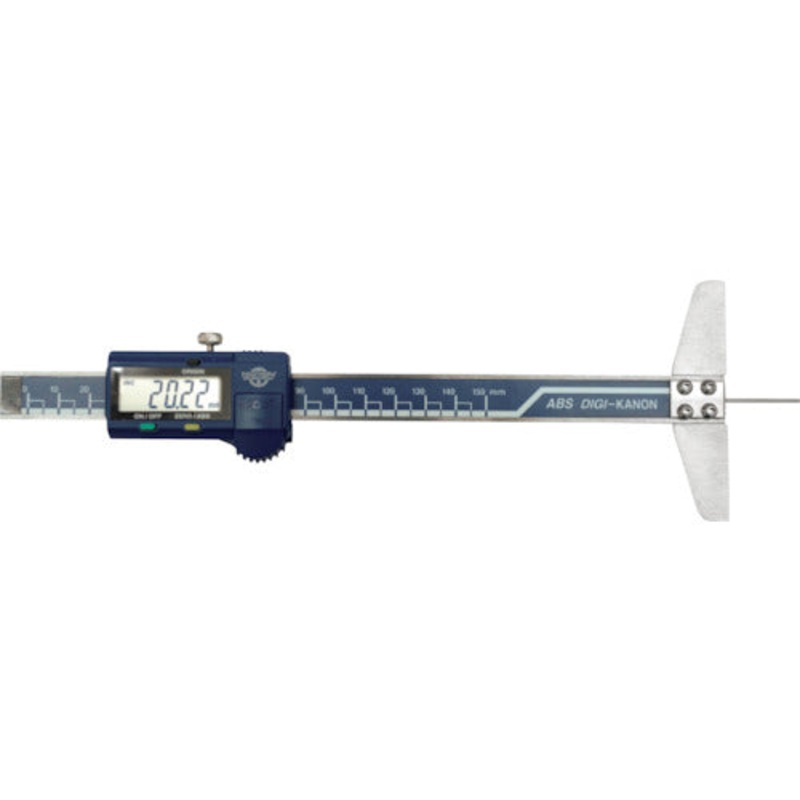

Features
Ideal for measuring the depth of small holes.

Use
For measuring the depth of small holes that cannot be measured with a coordinate measuring machine.

Specification
Manufacturer code: 177033
Measurement range (mm): 0 to 300
Minimum display (mm): 0.01
Total length (mm): 405
Base dimension (mm): 80
Instrumental error (mm): 0.03
Data output Terminal: Yes
Rod diameter (mm): 1.5
Power source: Button type silver oxide battery (SR44) x 1 piece (included)
Power source (V): Button type silver oxide battery (SR44) x 1 piece (included)

Specification2
With external output function

Material/Finish

Set contents/accessories

caution
