Features

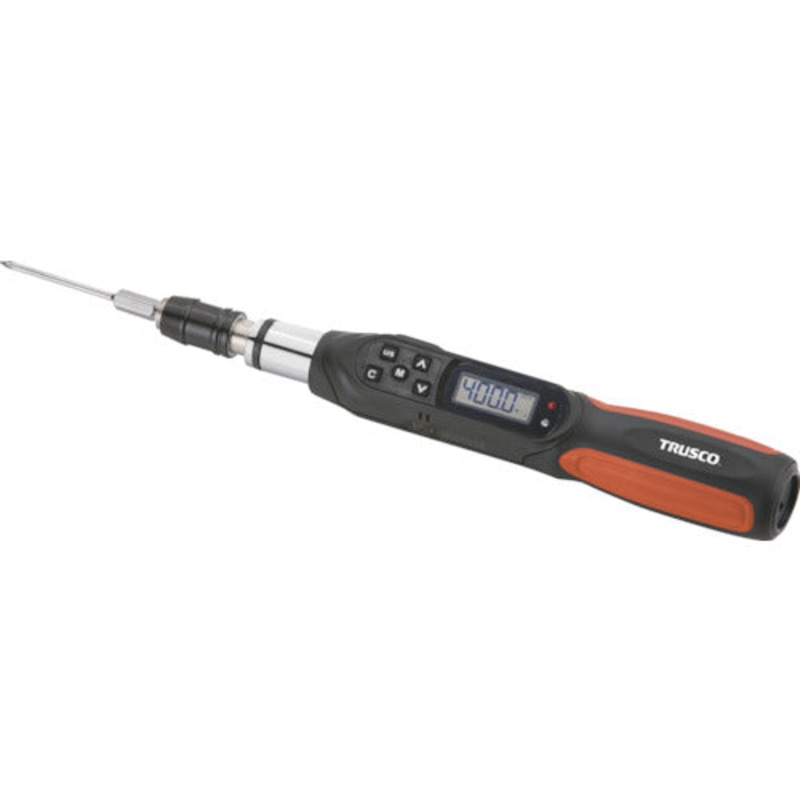

This is a screwdriver type torque measurement tool.
Informs you of the torque status with a buzzer sound and LED lighting.
Can be connected to a computer using a USB communication cable, and data can be extracted as a CSV file.
Comes with a calibration certificate.
Equipped with track mode & peak mode switching function.
Track mode displays the torque value during work in real time, and peak mode displays the maximum torque value during work.

Use
For inspection and tightening work.

Specification
Torque adjustment range (Nm): 0.40 to 0.2
Minimum scale (Nm): 0.001
Drive angle (mm): 6.35
Overall length (mm): 203
Set contents: USB cable

Specification2
Torque accuracy: Clockwise 2%, counterclockwise 3%
Load direction: Right, left
Memory that can be recorded on the main unit: 250 items
Communication function included (USB)
Calibration book included
Power source: AAA alkaline batteries x 1 piece (included)

Material/Finish

Set contents/accessories

caution
