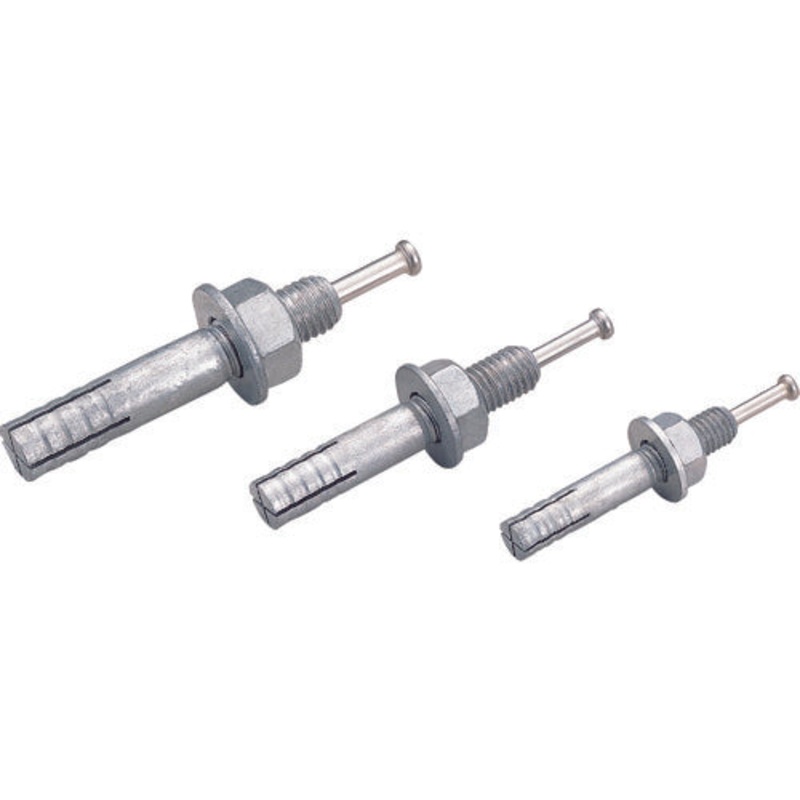

Features
Reliable installation is possible by simply driving in a pin.
You can reliably confirm that driving has been completed just by looking at the pin.
Dob plated specification with excellent corrosion resistance.

Use
Architectural, electrical, sanitary, heating and cooling work, signboard/chair installation, machinery installation work, etc.

Specification
Thread designation: M8
Overall length (mm): 70
Thread length (mm): 25
Maximum attachment thickness (mm): 25
Prepared hole diameter (mm): 8.5
Maximum tensile load (kN): 10.6
Embedding depth (mm): 35
Standard construction torque (Nm): 12
Drilling depth (mm): 40 or more
Width across flats dimension (mm): 13

Specification2
Boxed

Material/Finish
Steel (Core rod: Stainless steel)
Surface treatment: Hot dip galvanized (Core rod: Stainless steel)

Set contents/accessories

caution
Maximum tensile load is the value when concrete strength is Fc21N/[[MM2]].
